IKAS Evolution Push

IKAS Evolution

IKAS Evolution Package for IBAK Push Systems is a robust database application for lateral inspection utilizing LACP coding. This software will allow you to capture video and images, and produce complete report with defect identification and scoring. Data and videos can be exported for the user to view the information. The software has several expansion modules available to further its capabilities.

Details

Basic sewer data projects – basic module type
Managed sewer objects: sections, manholes, and laterals
Standard-compliant sewer data acquisition
Operation with task-related menus and dialogues
Assistant for condition data acquisition
Management of inspection projects with customer, project and job data
Management of sewer objects with maser and condition data, photo and video data
Import and attribution of digital photos to condition data
Digital single image capture from linked videos
Data transfer assistant
License-free sewer MPEG player for data transfer (without an MPEG decoder)
Internal MPEG mobile encoder (Sensoray)
Configurable video overlay of master and condition data
Condition data acquisition synchronized with video recording
Single monitor display with:
- Live video display
- Switch between the video picture and the IKAS dialogues
For IBAK push systems and systems with control console BP

IKAS Evolution Laser Diameter Measurement

For IBAK laser cameras
During push rod operation for diameter estimation only

IKAS Evolution LACP Interface Extension

Evolution Compatibility

Print Excel

Evolution Modules

Map Viewer

Graphical display of the sewer network with manholes, sections and laterals from the coordinates of the sewer data according to the data interface
Interactive operation with links to the sewer and inspection data
Work progress indicator for graphical processing of the TV inspection
Display of pipe runs with inflection points
Site plans/background maps
- Display in raster and vector format (DXF, TIF, JPG, PNG, BMP)
- Geo-referenced
- Fitting in of scanned background maps with 3 possible modes:
  1. Aligning matching points;
  2. Entering known co-ordinates
  3. Setting the scale and position of background maps
- Management of plan directories
Display configuration with GIS layer management
Per each IKAS Evolution workstation

Map Editor

Extends the Map Viewer with:

Graphical sewer network editing/digitizing functions
Digitization of sections, manholes, and laterals
- Includes run of sections (laterals) via inflection points
Shifting of manholes and pipe run inflection points
Setting parameter texts free

**Map Viewer is required!**

Map Route Assistant

Extends the MapViewer + Editor with:

The lateral run assistant
- Generation of the lateral run from the inspection data
- Automatic calculation of bends and branch sewers/connection pipes from the measurement data and the TV inspection
- Optional measurement with the Navigator
- Fitting the pipe run to fixed points
Live display of the lateral run during the camera inspection

**Map Viewer + Editor are required!**

3D GeoSense

Acquisition of IBAK 3D sensor measured data for the survey of sewer pipe runs with x, y, and z coordinates
In one operation with the TV inspection
Real time presentation of the surveyed pipe run during the TV inspection
The pipe run is stored with the x, y, z coordinates according to the reference coordinate system
Export to all supported sewer data formats
Adaptation to geo fixed points with assistant functions of the IKAS Evolution Map Route Assistant

**For IBAK TV systems equipped with 3D sensors & IKAS Evolution Map Route Assistant required!**

Defects Measurement

For IBAK pan and tilt cameras on camera tractors (trigonometric method)
For cameras with parallel lasers on camera tractors (reference measurement)

Laser Deformation Measurement

For IBAK laser cameras
Point-wise deformation measurements
IBAK cameras with measurement lasers
For ellipsoid deformation of flexible pipes
Measurement with 5 measuring points

Navigator II

Branch sewer identification (angle, direction, diameter)
Elbow bend identification (angle, direction) in PVC pipes (Navigator I for vitrified clay)
Assistant for acquisition of branch sewers, bends/elbow bend angles and directions by means of graphical video image analysis
Extension to the Map Route Assistant
Directions are stored as clock face positions and additionally in degrees

*Requirements*

Map Route Assistant
Video source with undistorted aspect ratio
Upright camera image or IBAK camera position sensor
Also with video analysis or single defects image
Check the supported coding systems

Tilt Measurement

For office workstation, TV and PANORAMO system
For sections and laterals
Measured data acquisition and management also for reverse measurement
Invert elevation correction
Measuring diagrams and report function

Temperature Measurement

For office workstation, TV system
For sections and laterals
Measured data acquisition and management, also for reverse measurement
Measurement diagrams and report function

Reference Image Defects Measurement

Defects measurement on reference images
Measurement of defects on pipe walls using a digital image
Based on reference values in conjunction to the optical system and the diameter
GUI for calibration of camera systems/diameters
Per workstation

Job Rule Management

Templates for project settings such as video overlay, condition coding system, reference tables, etc.

Video Analysis

Import of videos with optional attribution to the inspection data
Condition data acquisition in synchronization with video playback
Digital single image capture from the video playback
No MPEG recording

Continuous Profile Analysis (LaserScan)

Sectional continuous profile analysis with IBAK Profile Laser cameras
Spiral laser measurement with ORPHEUS 2
For any forms of deformation of flexible pipes
Profile analysis reports completely integrated
For IKAS Evolution Vehicle or Office only

**Videos have to be made by the IBAK profile recording function in IKAS Evolution!**

PANORAMO Analysis Pipeline + SI

Assistant for analysis of the recorded PANORAMO scan data for sections and manholes

Import of PANORAMO films with optional attribution to the inspection data
Condition data acquisition on the basis of the recorded PANORAMO films
Replaces conventional EDE mode
Inspection data acquisition – PANORAMO analysis
For section and manhole PANORAMO films
Single image digitization
Defects measurement in PANORAMO films (optional 3D measurement)
Data transfer with freeware PANORAMO Viewer

PANORAMO Analysis SI

Assistant for analysis of the recorded PANORAMO SI scan data for sections and manholes

Import of PANORAMO SI films with optional attribution to the inspection data
Condition data acquisition on the basis of the recorded PANORAMO SI films
Replaces conventional EDE mode
Inspection data acquisition – PANORAMO SI analysis
For manhole PANORAMO films
Single image digitization
Defects measurement in PANORAMO films (optional 3D measurement)
Data transfer with freeware PANORAMO Viewer

PANORAMO SI 3D Measurement

Extension of PANORAMO Analysis SI

Photogrammetric measuring method
Measurement of distances and pipe diameters with circular and oval section
In manholes with any profile shape
The measured object must be included in the point cloud
The result of the measurement:
- Is saved to the PANORAMO film
- Graphical display in the 3D view and point cloud
- Numerical data in condition coding system

Shape

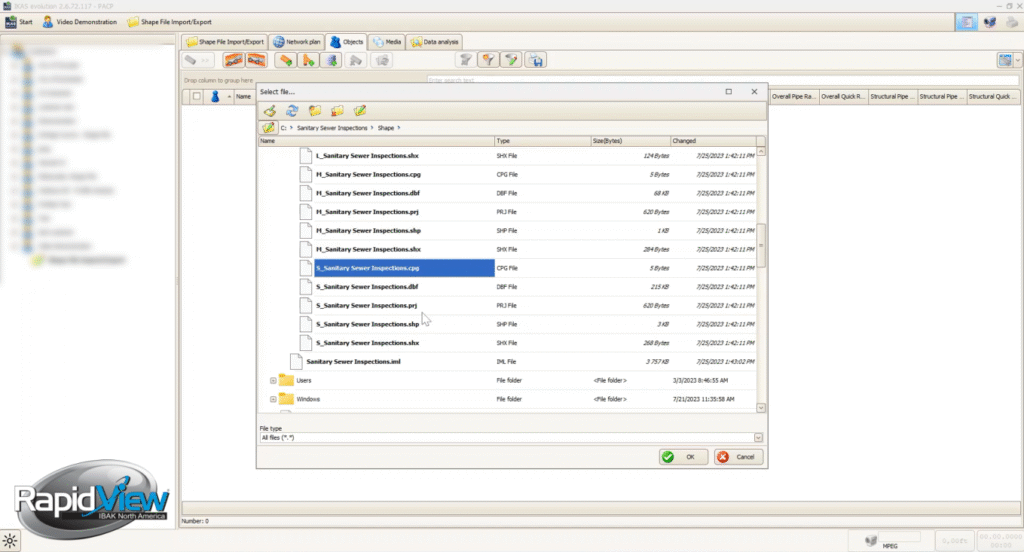

Data exchange in the ESRI ArcGIS Shape format for object parameters regarding section, manhole, and laterals*

Primary keys must be available in the Shapes
Export:
- Object geometry as Shape
User configuration of the object parameters that are to be exported (Alignment of the object data fields to the Shape file)
Import:
- User configuration of the object parameters that are to be imported (Alignment of the Shape data fields to the IKAS/IKIS object fields)
- load/save different field alignments

* Depending on the database configuration

SanPlan

Detailed Rehabilitation Planning Tool as an extension to IKAS Evolution Office

Sewer data for sewer sections, laterals, and manholes
Import according to the IKAS Evolution interfaces
Client-server operation possible with project locking (only one user can access a project at a time)
Creation of several planning variants
Demand, preliminary and basic planning
Rehabilitation types with: repair, renovation and reconstruction planing and decommissioning
Any number of planning variants
Specification of a preferred variant
Hierarchical table of rehabilitation techniques (must be built by the user)
Technique filter controllable by object parameters and rehabilitation types
Rehabilitation report
