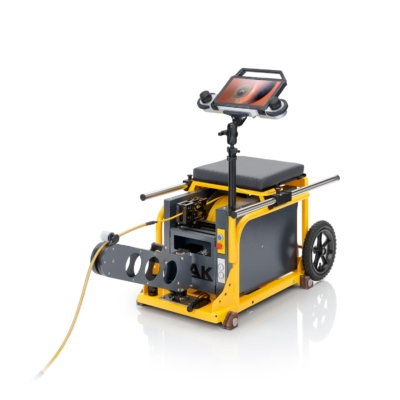

The portable BP 3 control unit is designed to be easy to use, economical, and compatible with many different IBAK systems, including the MainLite® HD compact cable reels, MiniLite® 3 HD Push Systems, and the MicroGator® Air. The controller features a large 12″ Windows PC touch screen with IKAS Recorder software pre-installed. It can be mounted in a vehicle or on a mobile rack for off-road inspections. The BP 3 control unit also features Bluetooth wireless connection, Wi-Fi Signal, and USB connections for exporting.
| Controllers | ||||
 |
 |
 |
 |
|
| BS 10.0 | BP 3 | BS 3.5 - 10X | BS 7.0 - 10X | |
| Pushrod Control | ✔ | ✔ | ✔ | ✔ |
| Portable w/ Digital Recording | - | ✔ | - | - |
| Mounting | Fixed | Portable or Fixed | Fixed | Fixed |
| Lateral Launch Control | - | - | ✔ | ✔ |
| Tractor Control | ✔ | ✔ | ✔ | ✔ |
| PANORAMO® Control | - | ✔ | ✔ | ✔ |
| Text Entry (On Screen Display) | - | ✔ | ✔ | ✔ |
| Fiber Optic Reel Control | - | ✔ | 1000' (300m) | ✔ |
| High-Definition Capable | - | ✔ | ✔ | ✔ |
| Set Top Hats | ✔ | ✔ | ✔ | - |
| Set Sleeves | ✔ | ✔ | ✔ | - |
