HD Mainline Inspection System

Mounted Systems

IBAK HD Inspection Systems provide sewer camera operators with clear images and videos, every time. Our HD inspection equipment uses high-strength, low-weight fiber optic cable that is capable of maintaining signal quality over much longer distances. Additionally, fiber optic cables are much stronger than traditional coaxial cable and require fewer repairs and reterminations in the field.

With an IBAK HD Inspection Camera, you can give system owners the information they need while avoiding motion blur and out of focus images. Our powerful camera tractors are built out of dense materials to maintain enough traction to pull long distance inspections. IBAK’s fully synchronized cable reels ensure that you don’t run over your cable on the way back and reduces wear on your cable.

You can benefit from deformation/diameter measurements, high power LED lighting, 3D GeoSense Mapping compatibility, and many more features by choosing an IBAK HD sewer inspection system.

Related Videos:
🎦 IBAK HD Camera Footage ORPHEUS HD + ORION 3
🎦 ORPHEUS and ORPHEUS HD Overview
🎦 T76 Tractor Overview
🎦 T66 Tractor Overview
🎦 Fully Synchronized Cable Reels

HD Inspection Cameras
NANO® HD ORION® 3 ORPHEUS® HD ARGUS® 6
Range (Diameter) 3" (75mm) and up 4" (100mm) and up 6" (150mm) and up 8" (200mm) and up
Sonde Transmitter In Camera In Camera - -
Pan & Tilt
Zoom - x2 Optical / x16 Digital x10 Optical / x12 Digital x10 Optical / x16 Digital
Auto-Iris
Always Upright Image
Auto-Focus
Laser Measurement
Pushrod Capability NANO-L® ORION-L® 3 - -
Lateral Navigation NANO-L® ORION-L® 3 - -
E-Flip - - ROTAX®
HD Video

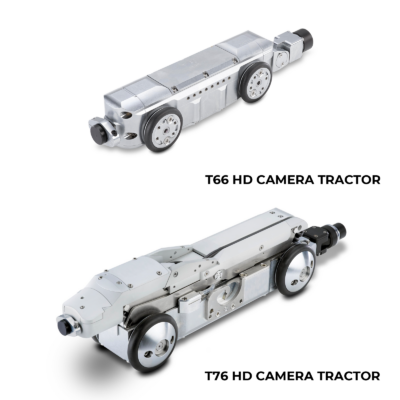

HD Camera Tractors
T66 HD T76 HD
Pipe Diameter 4" (100mm) and up 6" (150mm) and up
Distance Up to 1000' (300m) Up to 1640' (500m)
Zero Radius Steering
Dual Axis Connection
Auto Tilt Compensation (ATC)
Location Transmitter -
LISY Attachment (Optional) -
Elevator Attachment (Optional) Manual / Electric Electric

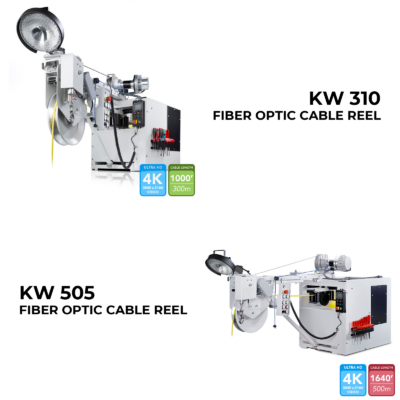

Fiber Optic Cable Reels
KW 305 KW 505
Range (Distance) 1000' (300m) 1656' (505m)
Mainline Inspection
Cable Retraction Fully Synchronized Fully Synchronized
Built-In Lowering Winch
Fiber Optic Capability
HD Operation
4K Available

Inspection Range:

4" (150mm)

-

120" (3050mm)
