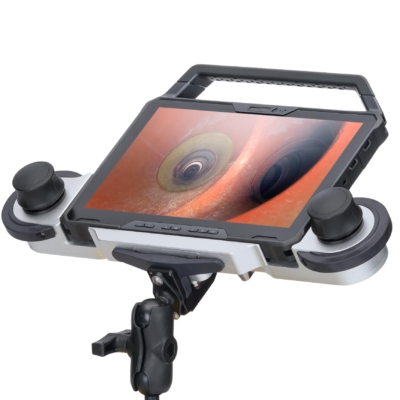

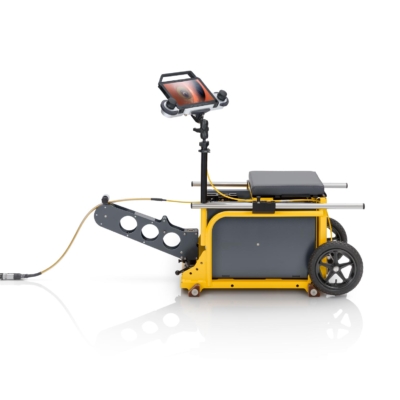

The MainLite® HD is based around two compact cable drums (KW 207 / KW 307) and the BP 3 multi-function portable controller. The entire unit can be mounted in an inspection vehicle, UTV, or a pickup bed. For portable applications, you can place the unit in the MainLite® Portable Cart, which provides a cushioned seat and an ergonomic mount for the BP 3 Controller. Whether you are a small town, large municipality, or contractor, the MainLite® HD System is adaptable, capable, and ready to go at the push of a button.
| Portable Cable Reels | |||
 |
 |
||
| KW 207 | KW 307 | ||
| Range (Distance) | 656' (200m) | 1000' (300m) | |
| Mainline Inspection | ✔ | ✔ | |
| Cable Retraction | Power Assist | Power Assist | |
| Built-In Lowering Winch | - | - | |
| Fiber Optic Capability | ✔ | ✔ | |
| HD Operation | ✔ | ✔ | |
| 4K Available | ✔ | ✔ | |
| HD Inspection Cameras | |||
 |
 |
 |
|

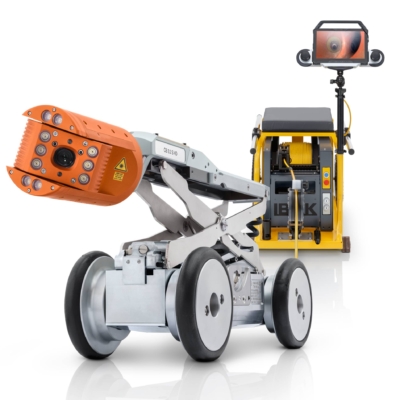

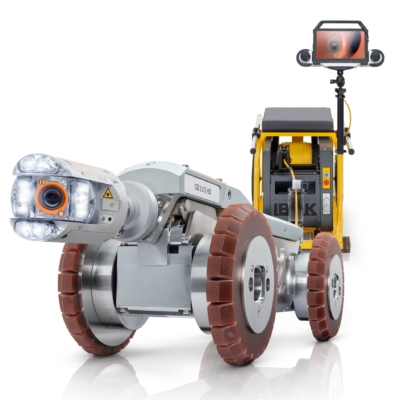

| NANO® HD | ORION® 3 | ORPHEUS® HD | |
| Range (Diameter) | 3" (75mm) and up | 4" (100mm) and up | 6" (150mm) and up |
| Sonde Transmitter | In Camera | In Camera | N/A |
| Pan & Tilt | ✔ | ✔ | ✔ |
| Zoom | - | x2 Optical / x16 Digital | x10 Optical / x12 Digital |
| Auto-Iris | ✔ | ✔ | ✔ |
| Always Upright Image | ✔ | ✔ | ✔ |
| Auto-Focus | ✔ | Push Button | ✔ |
| Laser Measurement | ✔ | ✔ | ✔ |
| Pushrod Capability | NANO-L® HD | ORION-L® 3 | - |
| E-Flip | - | - | ✔ |
| Camera Tractors | |||
 |
 |
||
| T66 HD | T76 HD | ||
| Pipe Diameter | 4" (100mm) and up | 6" (150mm) and up | |
| Distance | Up to 1000' (300m) | Up to 1640' (500m) | |
| Zero Radius Steering | ✔ | ✔ | |
| Dual Axis Connection | ✔ | ✔ | |
| Auto Tilt Compensation (ATC) | ✔ | ✔ | |
| Location Transmitter | - | ✔ | |
| LISY Attachment (Optional) | - | ✔ | |
| Elevator Attachment (Optional) | Manual / Electric | Electric | |
| HD Video | ✔ | ✔ | |
