NANO® HD

Cameras

Key Features:

Full Digital HD Resolution (1920 x 1080p)
4 Power-LEDs
Auto-Upright Image Control
Built-in Laser for Deformation & Diameter Measurement
Panning Range +/- 120°
Integrated Sonde Location Transmitter
Optional 3D GeoSense Pipeline & Lateral Mapping Sensor
Available for Lateral Navigation with optional Kiel Stick Attachment

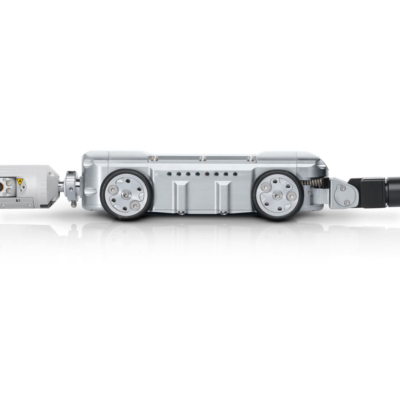

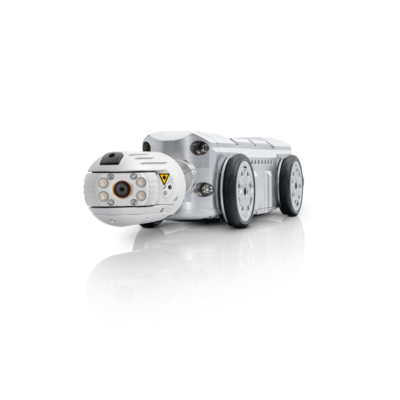

The NANO® HD is an inspection camera designed for small diameter applications that is capable of delivering full HD images/videos. This flexible camera is great for small diameter mainline inspections on a camera tractor, and the NANO-L® HD is perfect for push applications and lateral inspections with the Kiel Stick attachment for navigating tight fittings. Squeeze into lines as small as 3″ (75mm) in diameter without sacrificing image quality.

Inspection Range:

3" (75mm)

-

24" (610mm)

	HD CAMERAS

	NANO-L® HD	NANO® HD	ORION-L® 3	ORION® 3	ORPHEUS® HD	ARGUS® 6
Range (Diameter)	3" (75mm) and up	3" (75mm) and up	4" (100mm) and up	4" (100mm) and up	6" (150mm) and up	8" (200mm) and up
Sonde Transmitter	In Camera	In Camera	In Camera	In Camera	N/A	N/A
Pan & Tilt	✔	✔	✔	✔	✔	✔
Zoom	-	-	x2 Optical / x16 Digital	x2 Optical / x16 Digital	x10 Optical / x12 Digital	x10 Optical / x16 Digital
Auto-Iris	✔	✔	✔	✔	✔	✔
Always Upright Image	✔	✔	✔	✔	✔	✔
Auto-Focus	✔	✔	-	-	✔	✔
Laser Measurement	✔	✔	-	✔	✔	✔
Pushrod Capability	✔	✔	✔	✔	-	-
Lateral Navigation	✔	-	✔	-	-	-
E-Flip	-	-	-	-	✔	ROTAX®
HD Video	✔	✔	✔	✔	✔	✔
